Overview

This article is for customers of BreastScreen NSW and Best Practice. The focus of this article is configuring practice software result import acknowledgements to BreastScreen NSW so they know Best Practice has imported the messages.

Configuration

Ack Path


In some cases, the Capricorn may be configured as a service. See this guide for instructions on how to launch the Capricorn if it is set up as a service.


Capricorn Configuration Settings

  1. Click on Integration Options.



  2. Note the path set in ACK Management.


    If the folder does not exist, you must create it. Normally the default is C:\MO\Results\BP\Acks.

    Make sure the results folder has Modify, Read and Write permissions, AND is shared on the Network.


  3. Open the Best Practice software.



  4. Click Setup from the toolbar shown above.

  5. Click on Configuration from the drop down menu.



  6. The Configuration window should be displayed.

  7. Select Results Import from the left panel.

  8. Select the Add button under Acknowledgements shown below.

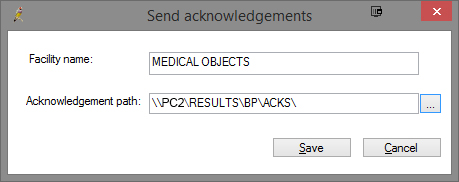

  9. The Send Acknowledgements window will appear.

  10. Add MEDICAL OBJECTS as the Facility name (include the space).



  11. Click the file browse button to select the folder that was configured in Medical-Objects Capricorn earlier. Again, Use a UNC path if you can.

    eg: \\PC3\Results\BP\Acks






  12. Once you have selected the path click OK.
