Overview

This guide provides instruction on configuring both Medical-Objects Capricorn and ZedMed software to import electronic results.

If you require any assistance with the installation or configuration, or if you have any questions, please contact the Medical-Objects Helpdesk on (07) 5456 6000.

If you have not Installed the Medical-Objects Download client, Please see the guide for Installing Capricorn on Windows.

Capricorn

Incoming

Configuration

Accessing the Capricorn Configuration Window


Message Box
iconnone
titleNote:
typegeneric
In some cases, the Capricorn may be configured as a service. See this guide for instructions on how to launch the Capricorn if it is set up as a service.


Excerpt Include
How to access Capricorn Configuration
How to access Capricorn Configuration
nopaneltrue

Capricorn

Configuration

Incoming Settings

  1. Click on Integration Options.



  2. Set the ACK Management path to the local Import folder on the server or the network path on a workstation, that points to the server import folder.

    For example:

    Newer Versions of ZedMed

    No Format
    (Capricorn installed on the Server) --> C:\Zedmed\Download\MoAcks
    Or
    (Capricorn installed on the Workstation) --> \\server\Zedmed\Download\MoAcks



    Older Versions of ZedMed

    No Format
    (Capricorn installed on the Server) --> C:\Patients\Download\MoAcks
    Or
    (Capricorn installed on the Workstation) --> \\Server\Patients\Download\MoAcks



    Message Box
    iconnone
    titleNote:
    typegeneric
    If the folders do not exist, you must create them.


  3. Select Server Parameters from the left panel.

  4. Under the Message Output Directory (main) set the results import path.

    The path can be different depending on where the Capricorn is installed.
    For example:

    Newer Versions of ZedMed

    No Format
    (Capricorn installed on the Server) --> C:\Zedmed\Download\
    Or
    (Capricorn installed on the Workstation) --> \\server\Zedmed\Download\


    Older Versions of ZedMed

    No Format
    (Capricorn installed on the Server) --> C:\Patients\Download\
    Or
    (Capricorn installed on the Workstation) --> \\Server\Patients\Download\


    Message Box
    iconnone
    titleNote:
    typegeneric
    If the folders do not exist, you must create them.


  5. The configuration is complete. Click Apply and OK.

Manage Queues

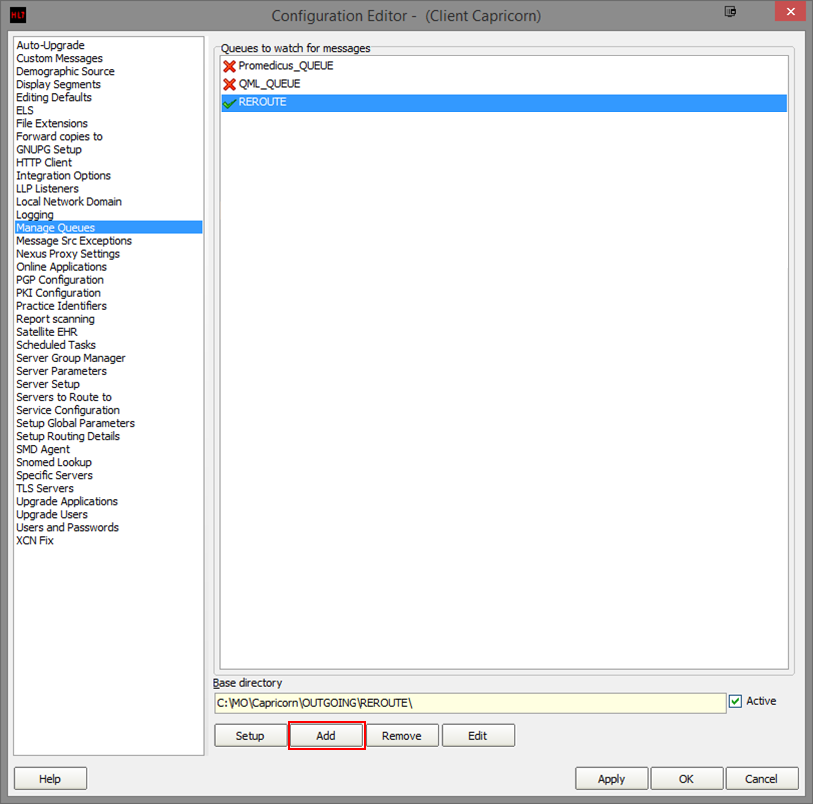

  1. Click on the Manage Queues link in the left hand panel.

    Image Added

  2. Click the Add button highlighted above.


  3. Anchor
    Step3
    Step3

    Image Added

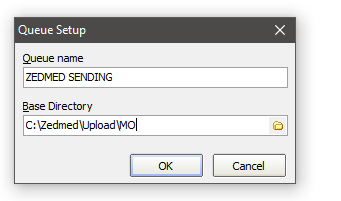

    Message Box
    titleSending Queue
    typegeneric
    Queue Name --> ZEDMED SENDING

    Base Directory --> C:\Zedmed\Upload\MO


    Will need to create a subfolder within C:\Zedmed\Upload for our going reports. Eg: C:\Zedmed\Upload\MO.
    This is to prevent multiple companies pulling reports from the same directory.

    See Step 6b.


  4. Once the queue is added, Click the Setup button.

    Image Added

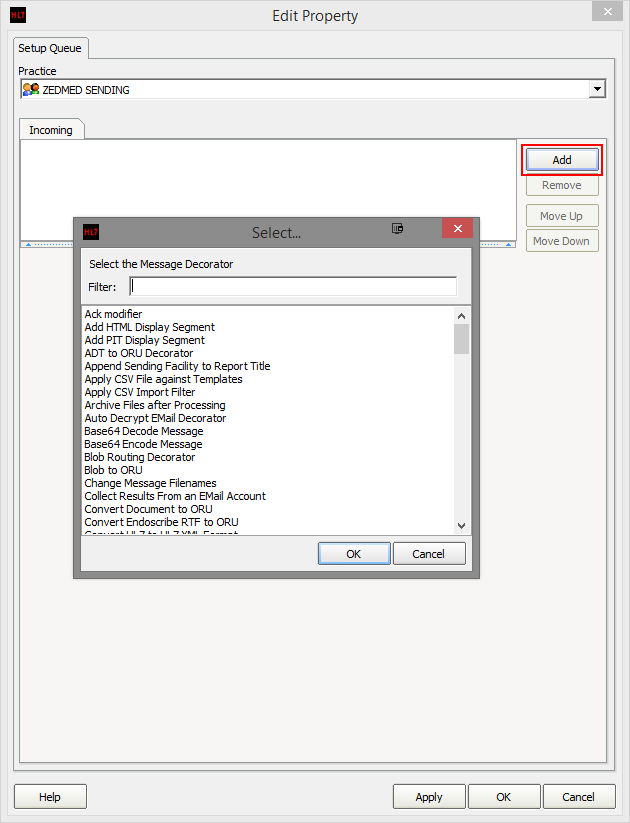

  5. In the window that appears, Click the Add button. Add the following decorators by searching each one and clicking OK.

    Image Added

    No Format
    Specify file mask           --> Set to 'PIT'
    Strip Non PIT lines
    Convert PIT to HL7          --> (Leave settings as they are)
    Route with Capricorn

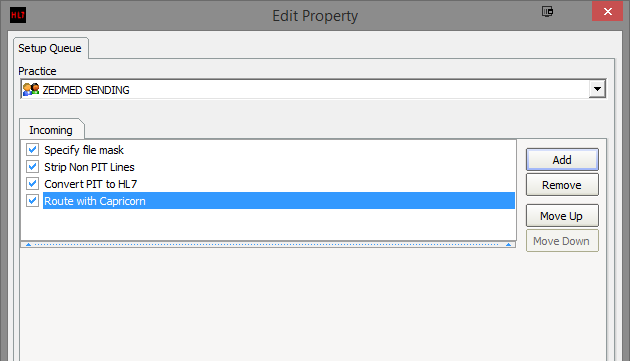

  6. Your queue should look like this.

    Image Added


  7.  Click Apply and OK to close the configuration.

Configuring Zedmed

  1. Open Zedmed, and Click on the Reception tab. Then Click the button titled Clinical Records.

  2. Open Zedmed and go to Tools > Global Options.


  3. Select the Communications tab, and select Messaging Provider tab.

  4. Click the Add button.

  5. Enter the Provider name Medical-Objects.

  6. Set the download path to the Message Output Directory path set earlier, for example

    No Format
    \\server\Zedmed\Download\



    If possible, Use a UNC path.

  7. Set the upload path to the ACK management path set earlier. For example:

    No Format
    \\Server\Patients\Download\MoAcks


  8. Make sure HL7 Acknowledgement and Is Active are set to Yes.

ZedMed Extensions Check

  1. Open Zedmed, and Click on the Reception tab. Then Click the button titled Clinical Records.

  2. Open Zedmed and go to Tools > Global Options.


  3. Select the Communications tab, and the General tab.




  4. Make sure that ORU and PIT are in the extension list on the left panel.



Importing Results in Zedmed

  1. Open Zedmed, and Click on the Reception tab. Then Click the button titled Clinical Records.



  2. From the top menu select Results > Import Laboratory Results (CTRL+F6)

  3. Once imported then hit the Results Inbox button.

    If results don't import, check the settings below.

Capricorn Manage Queues Configuration

Click on the Manage Queues link in the left hand panel.
Image Removed
Click the Add button highlighted above.
AnchorStep3Step3Image Removed Message Box
titleSending Queue
typegeneric
Queue Name --> ZEDMED SENDING

Base Directory --> C:\Zedmed\Upload\MO
Will need to create a subfolder within C:\Zedmed\Upload for our going reports. Eg: C:\Zedmed\Upload\MO.
This is to prevent multiple companies pulling reports from the same directory.

See Step 6b.

Once the queue is added, Click the Setup button.
Image Removed
In the window that appears, Click the Add button. Add the following decorators by searching each one and clicking OK.
Image Removed
No Format
Specify file mask           --> Set to 'PIT'
Strip Non PIT lines
Convert PIT to HL7          --> (Leave settings as they are)
Route with Capricorn
Your queue should look like this.
Image Removed
  •  Click Apply and OK to close the configuration.
