This guide provides instruction on configuring both Medical-Objects Capricorn and Total Care software to import electronic results.
If you require any assistance with the installation or configuration, or if you have any questions, please contact the Medical-Objects Helpdesk on (07) 5456 6000.
If you have not Installed the Medical-Objects Download client, Please see the guide for Installing Capricorn on Windows.
Configuring Capricorn Software
Accessing the Capricorn Configuration Window
|In some cases, the Capricorn may be configured as a service. See this guide for instructions on how to launch the Capricorn if it is set up as a service.|
Capricorn Configuration Settings
- Click on Display Segments from the left hand panel. Make sure the boxes are checked/ unchecked like displayed below.

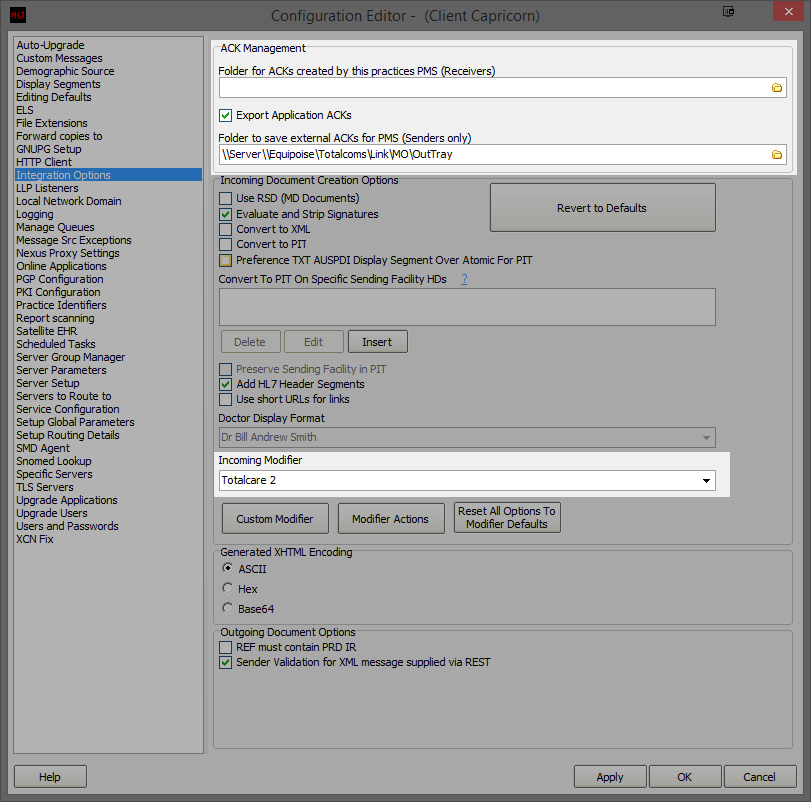

Click on Integration Options in the left hand panel.
Leave the Ack Management path blank, and
Note that Folder for ACKs created by this practices PMS (Receivers) should be as below though many sites don't have it set.
No Format \\Server\\Equipoise\Totalcoms\Link\MO\OutTray
You then check the box Export Application Acks
tick box and set the file path to the
InTray location. For Example
No Format \\Server\\Equipoise\Totalcoms\Link\MO\
Make sure the Incoming Modifier is set to Totalcare 2.
- Click on Server Parameters in the left hand side panel.
Under the Message Output Directory (main) set the results import path. For Example:
No Format \\Server\\Equipoise\Totalcoms\Link\MO\InTray
icon none title Info: type generic
Once completed you will need to contact TotalCare to ensure they are picking up the results from the folder that you have specified.
No Format Total Care Phone: 1300 239 477
Total Care Recipient SetupPlease ensure for people receiving Totalcare reports that they set each Recipient Communications settings as below.
