Overview

This guide provides instruction on configuring both Medical-Objects Capricorn and Audit4 software to import electronic results.

If you require any assistance with the installation or configuration, or if you have any questions, please contact the Medical-Objects Helpdesk on (07) 5456 6000.

If you have not Installed the Medical-Objects Download client, Please see the guide for Installing Capricorn on Windows.

Configuring Capricorn Software

Accessing the Capricorn Configuration Window


Capricorn Configuration Settings

1. Click on Integration Options.

   Image Modified


2. Set the ACK Management Receivers path as below:

   No Format
   (Capricorn installed on an Audit 4 Server machine ) --> C:\Inpath\MO\Acks (Capricorn installed on an Audit 4 client machine --> \\Server\Inpath\MO\Acks

   2.1 Check Export Application Acks.

   2.2 Set the ACK Management Senders Only path as below:

   No Format
   (Capricorn installed on an Audit 4 Server machine ) --> C:\Inpath\MO\Acks\AcksIncoming (Capricorn installed on an Audit 4 client machine --> \\Server\Inpath\MO\Acks\AcksIncoming







3. Check that the Incoming Modifier is set to Audit4.

   Image Modified


4. Select Server Parameters from the left panel.

   Image Modified

5. The paths above are set as follows



   No Format
   (Capricorn installed on an audit 4 server machine) -->  Message output directory C:\Inpath\MO Save pathology: C:\Inpath\MO\Labs Save Radiology: C:\inpath\mo\Labs Capricorn installed on an Audit4 Client machine --> Message output directory \\Server\Inpath\MO Save Pathology \\Server\Inpath\MO\Labs Save Radiology \\Server\Inpath\MO\Labs




6. Make sure that Save All ORU In Pathology path is UNTICKED











7. Select Manage Queues from the left panel

   .

   . Complete the Manage Queues section below.

Managed Queues

The Managed Queue is created to convert letters to REF format so they don't import as a result in Audit 4.

Image Removed

Convert AUDIT 4 INCOMING LETTERS ORU TO REF

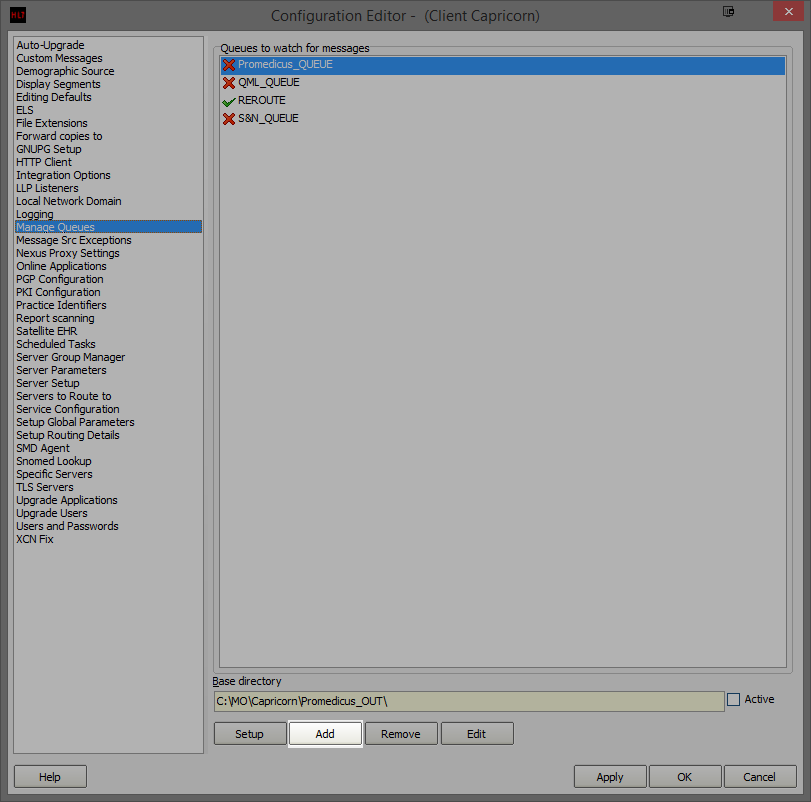

1. In the Managed Queues menu click Add.


Image Added

1. The queue setup window will open.






2. Enter the details as outlined below.



   No Format
   (Capricorn installed on an Audit4 server machine) --> Queue name: AUDIT 4 INCOMING LETTERS ORU TO REF Base Directory: C:\Inpath\MO\ (Capricorn installed on an Audit 4 client machine) --> Queue name: AUDIT 4 INCOMING LETTERS ORU TO REF Base Directory: \\Server\Inpath\MO\





3. Click OK on the queue setup, click the queue named AUDIT 4 INCOMING LETTERS ORU TO REF in the queues to watch for messages and click on Setup at the bottom of the configuration window.

   Image Modified

4. In the edit property window, we are going to setup the queue to convert the letters from ORU to REF for Audit4 import. On the right hand side, click on Add.






   No Format
   Convert ORU Message to REF No additional settings.  Store Message in Folder Additional settings required.




5. Once you have added both decorators you will need to supply additional configuration for the Store Message in Folder. Highlight the Store Message in Folder decorator on the edit property window. Notice that there are additional configuration options displayed below the decorator list. Make sure Use Original Filename is ticked.

   Image Modified

6. Leave the tickboxs on their default configuration and set the file path for the converted letters to be saved.







   No Format
   (Capricorn installed on an Audit 4 server) Store Message in Folder C:\Inpath\MO\Letters\ (Capricorn installed on an Audit4 client machine) Store Message in Folder \\Server\Inpath\MO\Letters\




7. Click Apply and OK to save the AUDIT 4 INCOMING LETTERS ORU TO REF queue and return to the Manage Queues configuration screen.







8. On the Manage Queues screen, click Add.

9. On the Queue Setup screen, name the queue and set its base directory.







   No Format
   (Capricorn installed on an Audit4 server machine) --> Queue name ConvertACK ConvertACK Base Directory C:\Inpath\MO\ACks\ConvertACK (Capricorn installed on an Audit 4 client machine) --> Queue name:  ConvertACK  ConvertACK Base directory \\Server\Inpath\MO\ACks\ConvertACK







10. Select AUDIT 4 OUTGOING RRI TO ACK from the Queues to Watch for Messages and click Setup.



11. Select Add from the right side of the Edit Properties window.

12. You can search the decorators by typing in their name when one of the decorators is highlighted.



    No Format
    Modify message with HL7 script. - Additional settings required.  Store message In folder - addition settings required.




13. In the Edit Properties, we need to add the HL7 Script to the Modify Message with HL7 Script configuration section.







14. You must paste the script exactly as shown below into the text box in the modifiers configuration. Be sure there are no extra spaces or empty lines at the top.

    Hl7 Script.





    No Format

    Program Test; var i:Integer; s : String; begin //HL7 Data is a precreated object with the HL7Data loaded for i := HL7Data.SegmentCount-1 downto 0 do begin begin s := HL7Data.Segmentname[i]; if not ((s = 'MSH') or (s = 'MSA')) then HL7Data.DeleteSegment(i) else else if s = 'MSH' then begin begin if HL7Data.GetFieldvalue(i, 8, 0,0,0) = 'RRI' then begin begin HL7Data.SetFieldvalue('ACK', i, 8, 0, 0, 0); HL7Data.SetFieldvalue('R01', i, 8, 0, 2, 0); end; end; end; end.




15. If you haven't already, you will need to add the Store Message in Folder Decorator to the AUDIT 4 OUTGOING RRI TO ACK Queue.





    No Format
    (Capricorn installed on a Audit4 Server Machine) --> Store Message in Folder: C:\Inpath\MO\Acks\AcksOutgoing (Capricorn installed on a Audit4 Client Machine) --> Store Message in Folder: \\Server\Inpath\MO\Acks\AcksOutgoing





16. Click Apply and OK to save the AUDIT 4 OUTGOING RRI TO ACK Queue and return to the Manage Queues configuration Screen.






17. Click Apply and OK to save the current configuration and to exit the Capricorn configuration editor.

    You have now completed the configuration for the Medical Objects Capricorn to download and send acknowledgements.

Software for Specialists (Audit4) Configuration.

You will need to contact the Software4Specialist Help-Desk so that they can configure Audit4 to Import the Letters and Lab results and the export of Acknowledgments.

Department: Support
 Contact Number: 1300 133 308
 Organisation: Software for Specialists (Audit4)

Audit4 will require the following Configuration:

1. Letters are to be imported from: C:\Inpath\MO\Letters
    Or as defined by the Convert Letters to REF queue’s Store Message in folder decorator (See step 13)







2. Lab results are to be imported from: C:\Inpath\MO\Labs


3. Acknowledgements are to be exported to: C:\Inpath\MO\Acks\ConvertAck

   Or as defined by the Base directory for the ConvertACK Queue (see step 17)

(Capricorn installed on a Audit4 Server Machine) -->

 i.      Store Message in Folder:              C:\Inpath\MO\Acks

(Capricorn installed on a Audit4 Client Machine) -->

ii.     Store Message in Folder:              \\Server\Inpath\MO\Acks

19.  Click Apply and OK to save the Convert Acks Queue and return to the Managed Queue configuration Screen.

20. Click Apply and OK to save the current configuration and to exit the Capricorn configuration editor.

You have now completed the configuration for the Medical Objects Capricorn to download and send acknowledgements.
